Laminated and Flexible Copper Busbar Connectors are developed from high conductivity based electrolytic grade copper sheets/foils. These are made using a press welding procedure where individual copper strips are fused through applying direct current as well as pressure without the need of foreign material.
Product Description
High Conductivity Battery Connector And Flexible Copper Bus Bars
Laminated and Flexible Copper Busbar Connectors are developed from high conductivity based electrolytic grade copper sheets/foils. These are made using a press welding procedure where individual copper strips are fused through applying direct current as well as pressure without the need of foreign material.
The process assures minimum resistance and helps in increasing products's service life as well as bringing a reduction in downtime. Further, these also come with superior mechanical & electrical properties at high temperatures.
Photos Show:
Details of Flexible Laminated Copper Busbars:
Laminated Flexible Jumpers advantages:
1) Welding press many laminations improve electrical conductivity and add the transmission of current.
2) The feature of flexible enable us to be made busbars in various types.
3) Laminated copper shunts are flexible and easy to install.
4) Flexible laminate busbar is not easy to be broken after thousands times of bending.
All sizes can be customized. Just send us your drawings, such as PDF, JPEG, PNG,JPG etc.
We will quote for you in 1-2 working days !
Technics Supports & Usage:
Busbar Technics Shows:
Our Advantages:
Strong Manufacturer: We have 7000 m2 standard workshop to assure the stability of busbars.
Strong After-sale Service: Our after-service team has 30 staffs. With professional busbar knowledge and more than 5 years' exporting experience, our team help to solve any problem during cooperation.
Timely Delivery: As to the standard copper busbar, we promise normal order will be delivered within 7 days. Non-standard copper bus bar delivery time, we can discuss.
Quality Guarantee: Material is tested before production to guarantee it is 100% new raw material. All busbars are inspected before delivery.
Competitive Price: We are professional factory to supply most competitive price with high quality. For long cooperation and large quantity, we can discuss discount price.
Company Show:
Laminated and Flexible Copper Busbar Connectors are developed from high conductivity based electrolytic grade copper sheets/foils. These are made using a press welding procedure where individual copper strips are fused through applying direct current as well as pressure without the need of foreign material.
The process assures minimum resistance and helps in increasing products's service life as well as bringing a reduction in downtime. Further, these also come with superior mechanical & electrical properties at high temperatures.

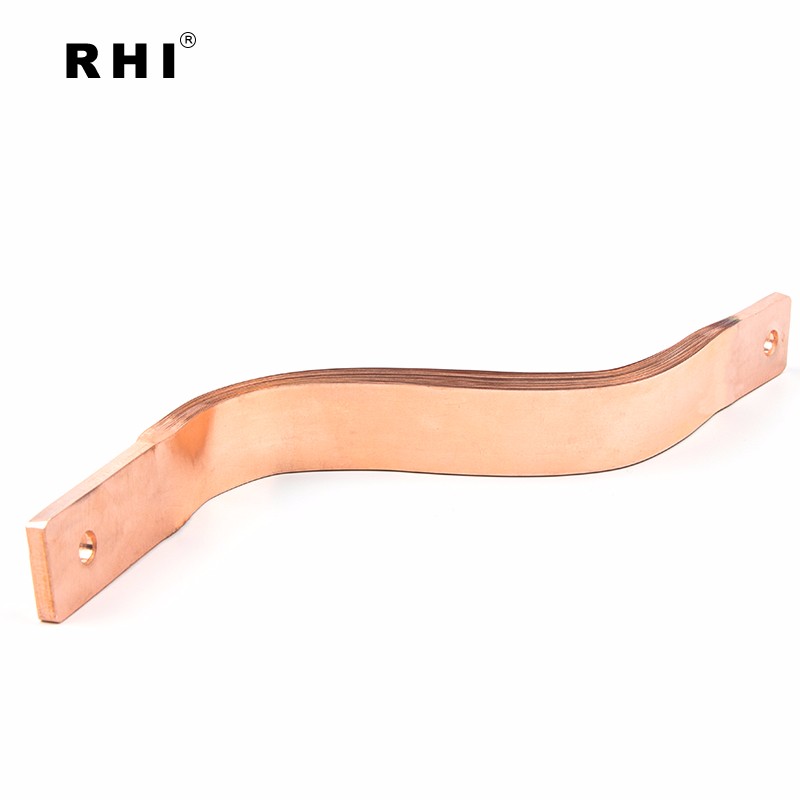

Photos Show:
Details of Flexible Laminated Copper Busbars:
| Material | T2 99.95% copper foils/sheet |
| Copper Foils Thickness | 0.1mm, 0.2mm, 0.3mm, 0.5mm, 1.0mm |
| Surface Finishes | Black Paint Electro brush Silver Plating Tank Nickel or Tin Plating |
| Production Process | High Ampacity Flexible Connection Molecularly Fused Laminates Ends High DC Current Under Pressure Welding |
| Current | Typical: up to 2000 A Possible: Up to 5,000 A |
| Flex parts of length | Up to 6.6 ft.(2meters long) |
| Width | Up to 6.0 inch (152mm ) |
| Max.Oeveall Thickness | 1.25 inch (32mm) |
| Testing | Resistance, Temperature Rise, Conductivity |
| Sample | Free |
Laminated Flexible Jumpers advantages:
1) Welding press many laminations improve electrical conductivity and add the transmission of current.
2) The feature of flexible enable us to be made busbars in various types.
3) Laminated copper shunts are flexible and easy to install.
4) Flexible laminate busbar is not easy to be broken after thousands times of bending.
All sizes can be customized. Just send us your drawings, such as PDF, JPEG, PNG,JPG etc.
We will quote for you in 1-2 working days !
Technics Supports & Usage:
| Techinics Abilities | Cutting, Punching, Twisting, Bending, Plating, Riveting,Dipping, Coating, Welding, Stamping,Tapping, Brazing, Drilling, Milling, Sawing etc |
| Plating Optional | Nickel Plating Silver Plating Tin Plating |
| Insulation Type | Epoxy Coated PVC Dipping Coated Heat Shrink Sleeves Adsorption |
| Hole Shape | Round Hole, Oval-shaped or Others |
| Edge Shape | Full Round Edge, Semicircle, Square Corner |
| Usage | 1)New Energy Vehicles 2)Battery Packs; 3)Power Supply Room; 4)Power Distribution Equipments; 5)Switchboards; 6)Panel Boards; 7)Low and Medium Voltage Switchgear; 8) Electric Bus, High Speed Train, 9)High Current & Control Equipment; 10)Busway Systems etc. |

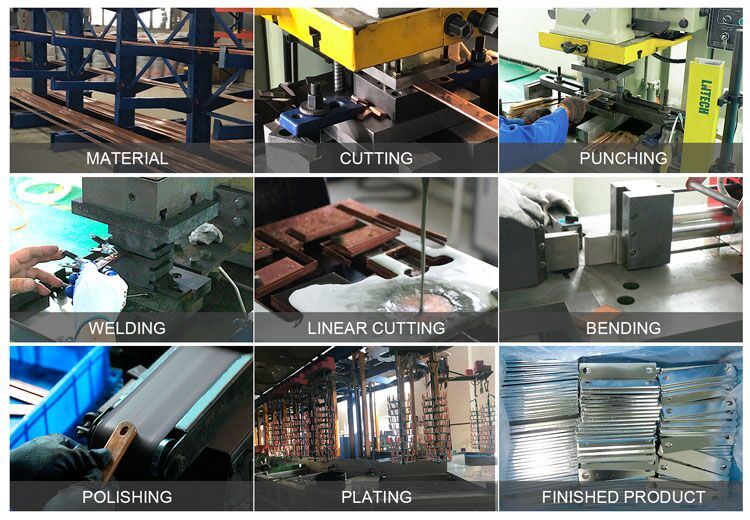

Busbar Technics Shows:
Usage Show:

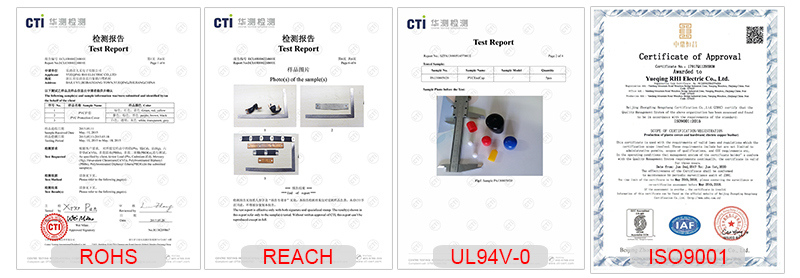

Certificate of Bus Bar:
Our Advantages:
Strong Manufacturer: We have 7000 m2 standard workshop to assure the stability of busbars.
Strong After-sale Service: Our after-service team has 30 staffs. With professional busbar knowledge and more than 5 years' exporting experience, our team help to solve any problem during cooperation.
Timely Delivery: As to the standard copper busbar, we promise normal order will be delivered within 7 days. Non-standard copper bus bar delivery time, we can discuss.
Quality Guarantee: Material is tested before production to guarantee it is 100% new raw material. All busbars are inspected before delivery.
Competitive Price: We are professional factory to supply most competitive price with high quality. For long cooperation and large quantity, we can discuss discount price.

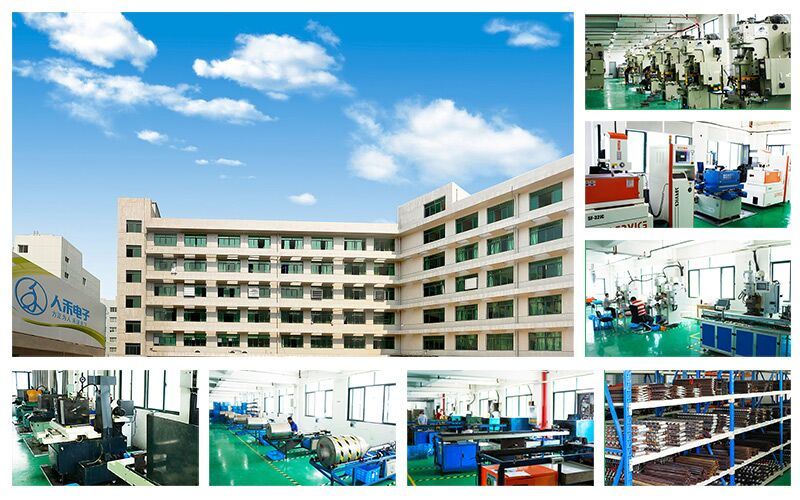

Company Show:
